SYH LED LINEAR LIGHT allows the light distribution components to be directly assembled together through side panels that are docked with each other,maintaining a seamless connection on the emitting surface, it can be directly spliced without gaps, and achieve uniform and consistent overall luminous effect after lighting up at the splicing point, achieving seamless optical lighting effect.
Moreover,each module is consistent and can be directly assembled. The installation process is simple and easy to assemble,reducing labor costs and installation difficulty.
|
Optical/Electrical Data |
|
|
|
|
|
|
|
Model |
LED Linear light Series |
|||||
|
Power |
W |
20W |
40W |
60W |
80W |
100W |
|
Heat sink |
mm |
L570/L1130/L1410/L1690/L2250 |
||||
|
Input Voltage |
V |
AC180-264V |
||||
|
Color Temperature |
CCT |
2700K-6500K |
||||
|
Luminous efficiency |
lm/w |
130lm/w,150lm/w |
||||
|
CRI |
|
>80(90,95) |
||||
|
Frequency |
Hz |
50Hz-60Hz |
||||
|
Power Factor |
PF |
>0.95 |
||||
|
Max linkable |
|
Internal 3*1.5mm²cords, Max linkable length 60M or Power<2400W |
||||
|
Multiple splicing angles |
|
Corner-L 、T 、+ 、Y 、V |
||||
|
Working Temperature |
℃ |
-20℃~+45℃ |
||||
|
Control protocol(s) |
|
4 CCT Adjust |
||||
|
Lamp Viewing Angle |
|
PC Opal diffuser-95° |
||||
|
Different diffusers |
|
Prismatic diffuser |
||||
|
Rating |
/ |
IP20 |
||||
|
Material |
/ |
Aluminium Housing |
||||
|
Life span |
/ |
L70B30@>100000h |
||||
|
Warranty |
|
>5 years |
||||
|
Certificate |
|
CB,SAA, CE ROHS |
||||
|
Gross Weight |
Kgs |
0.88Kgs,1.48Kgs,1.82Kgs,2.36Kgs,2.96Kgs. |
||||
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

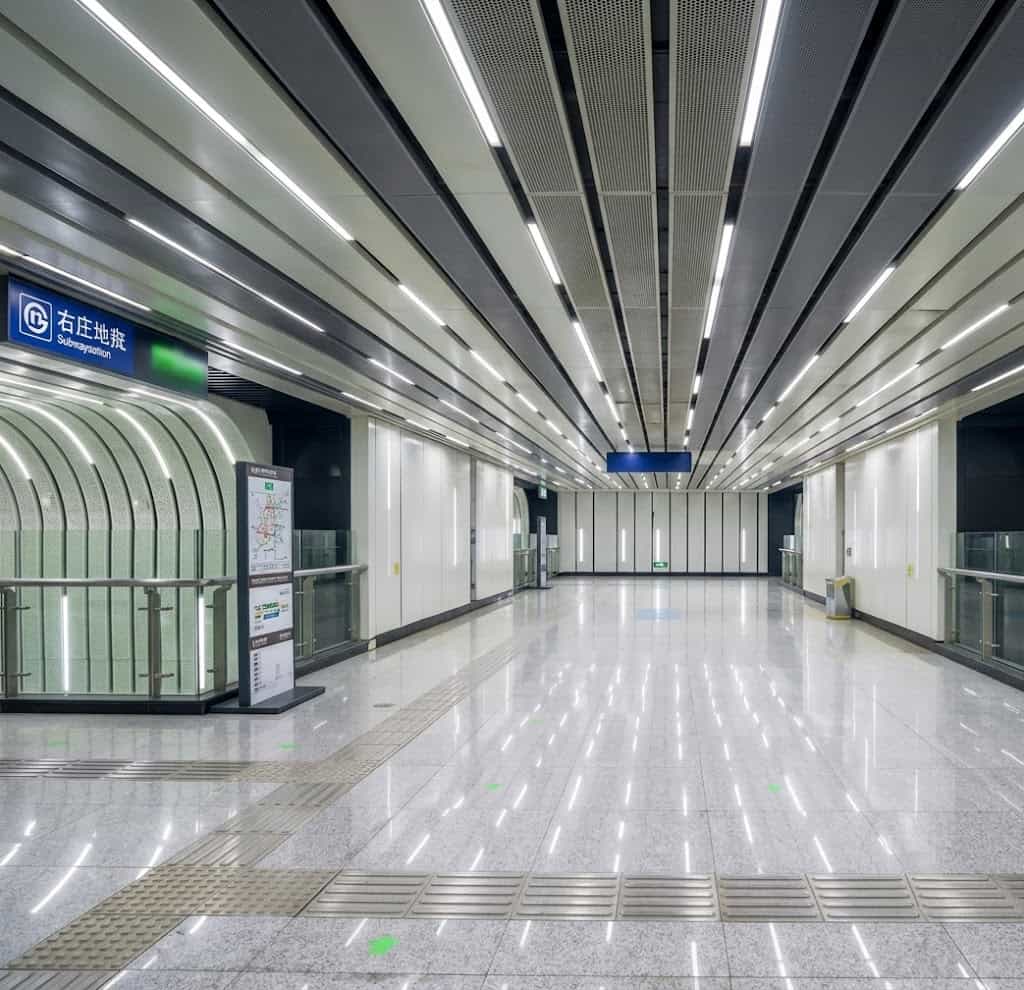

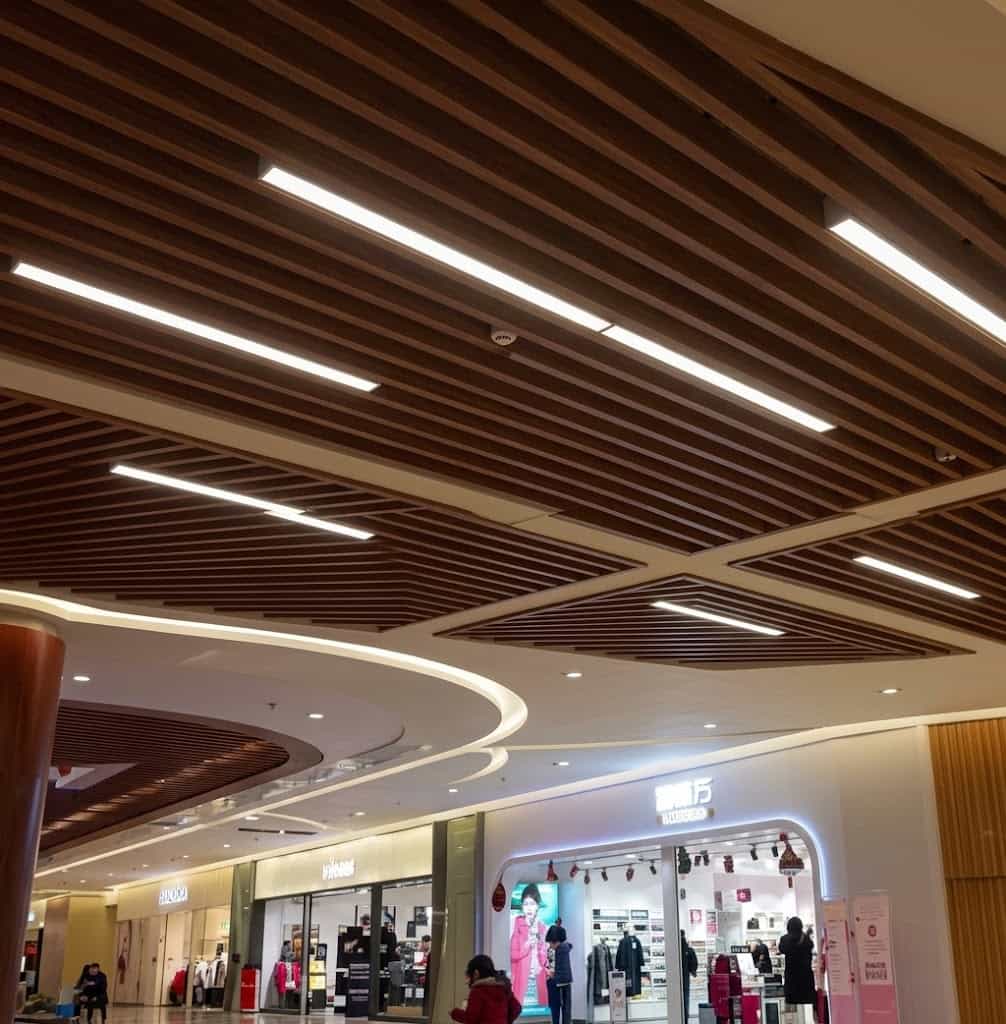

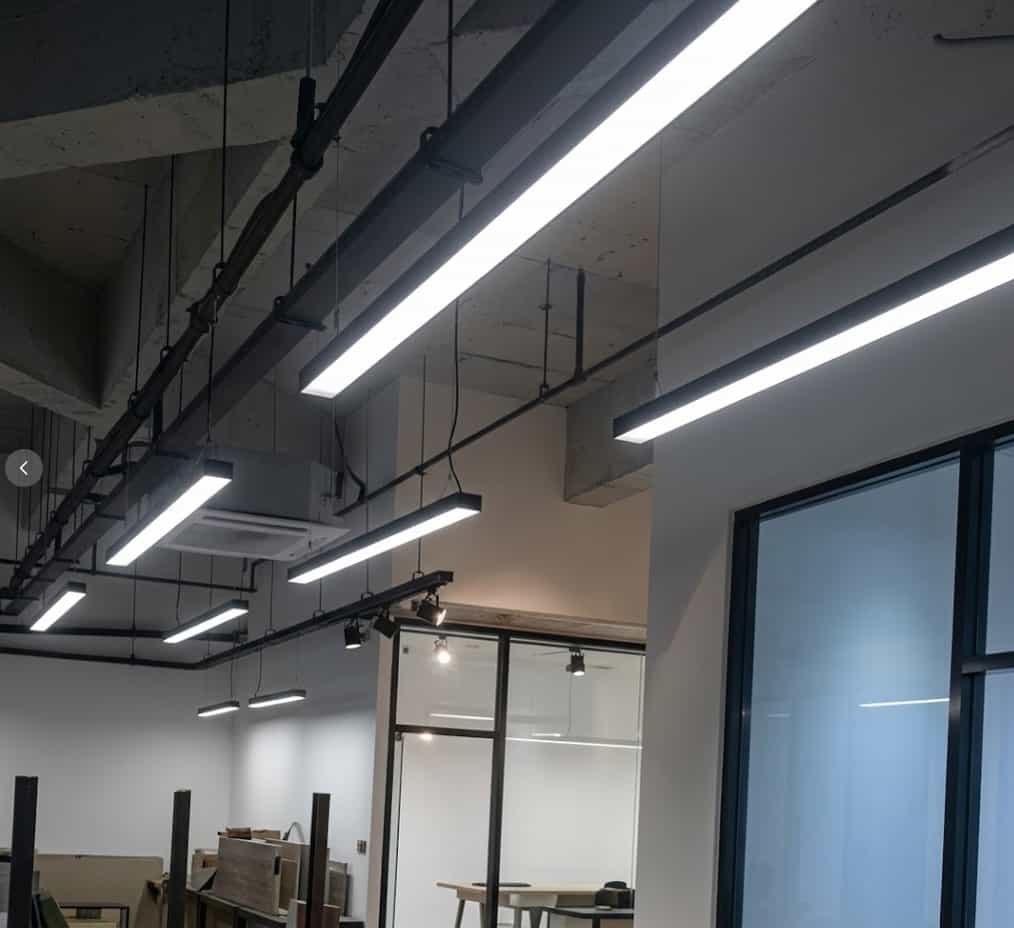

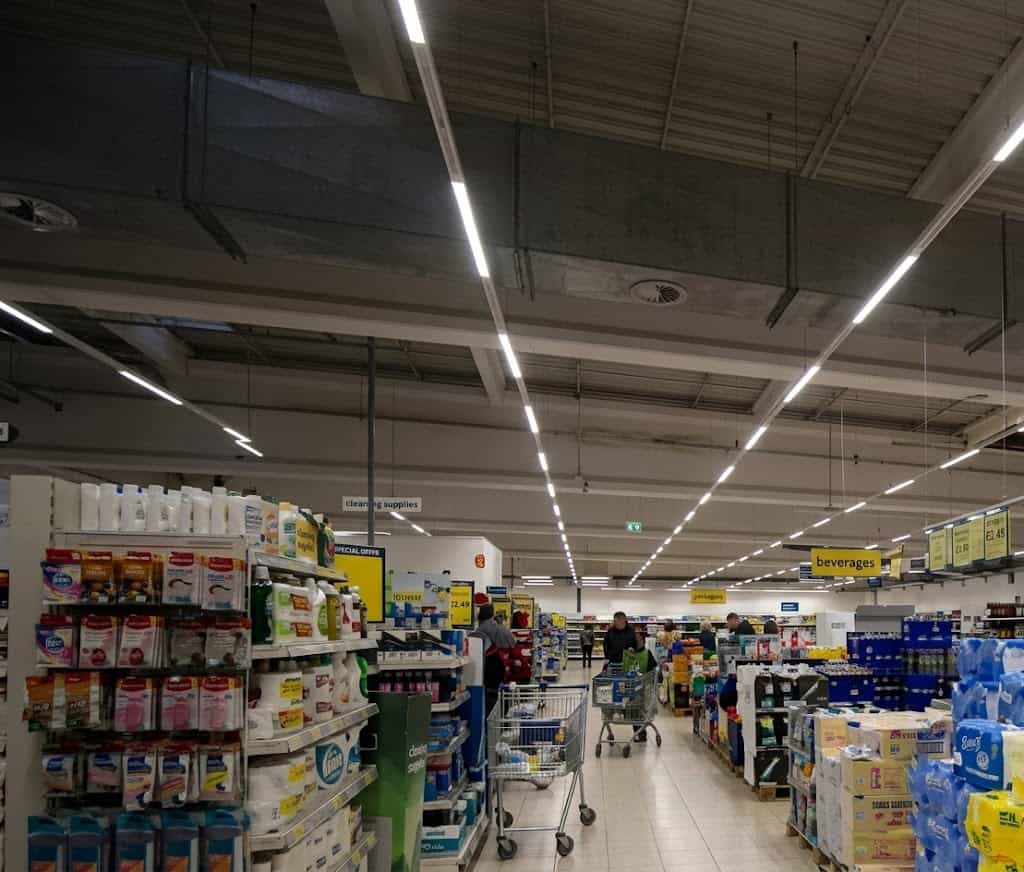

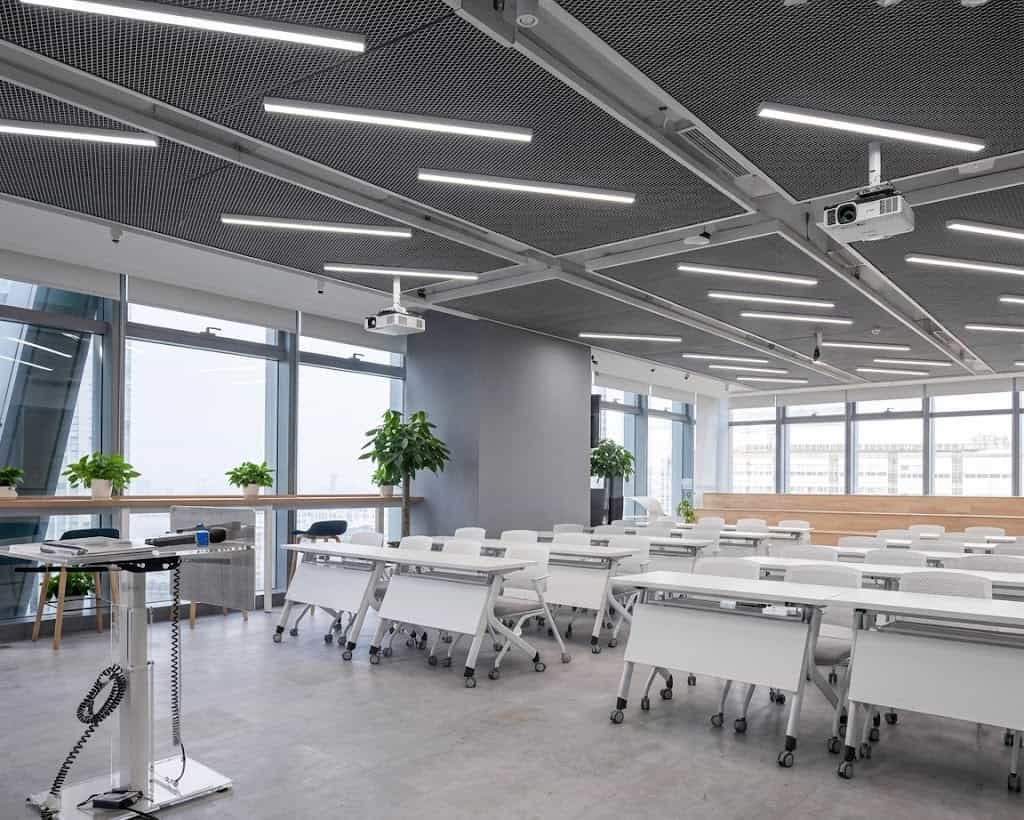

TYPES OF APPLICATION
Office,Meeting room,Hotel,Hospital,Supermarkets,Shopping mall,Large retailers,Library,School,Manufacture,Warehouses,Exhibition centers,Toll stations,Gymnasium etc.
